Tool works

TECHNICAL AND TECHNOLOGIAL CAPACITIES

nástrojárna

MOULDS - single and double-chamber moulds for thermoplastics injection moulding Our products have been successfully applied in automotive and electrotechnical industry. We manufacture simple forms with wedge type opening and thread assisted removal of the cores, forms for mounting to universal clamping frames and forms for independent mounting.
The construction solution based on the most recent technologies (2D, 3D CAD/CAM, CAM - Surfcam, CADKEY 19 and 20, ACAT MDT4(3D) offered to our clients, belongs to our main advantages in the manufacture of single and double-injection moulds.

SHEET METAL - stamping press tools

We manufacture tools for hydraulic, eccentric and manual presses: hole punching, cut-out tools, transfer, bending, extrusion, sizing, etc. Tools for edge bending machines and automatic machines. Engraved dies for pressing tools.

SMALL-BATCH PRODUCTION

CNC milling centre - electrospark machining

GAUGERS, JIGS, SINGLE-PURPOSE EQUIPMENT

assembly jigs, master forms - milling, rivetting, cutting, drilling, welding

METAL CUTTING TOOLS

Special tools, cutters, bores, curves for automatic turning machines, collets, etc. Sharpening of cutters, toos and bores.

CONSTRUCTION WORK

Our experienced constructors have been using the latest technologies as e.g. CAD, CAM, CADKEY system and Auto CAD. They will find the best solution for your project according to your specifications. They will prepare all detailed drawings necessary for further production of tool requested by you consulting necessary changes and adjustments with you. We are able to receive data in formates: *.DWG, *.IGS, *.SAT, *.DXF.

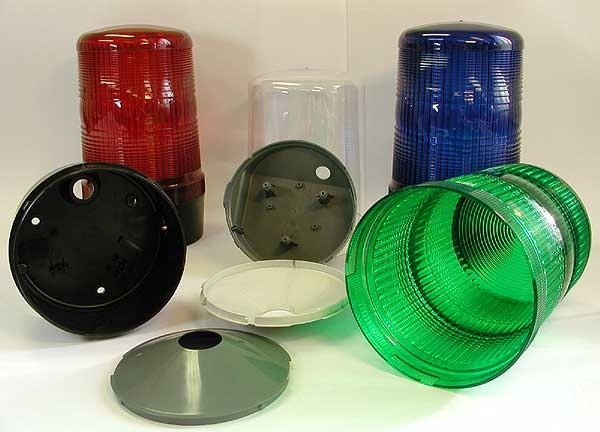

Image 0 - kaloty_v
kaloty_v

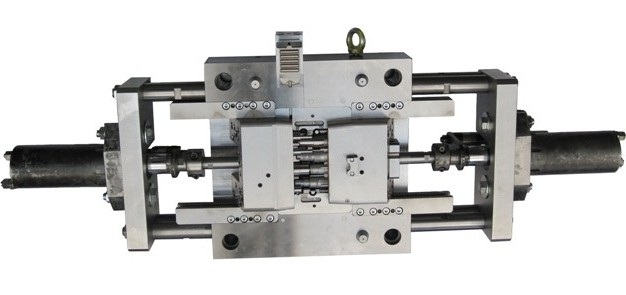

Image 1 - Nastrojarna-Strizny_nastroj_v
Nastrojarna-Strizny_nastroj_v

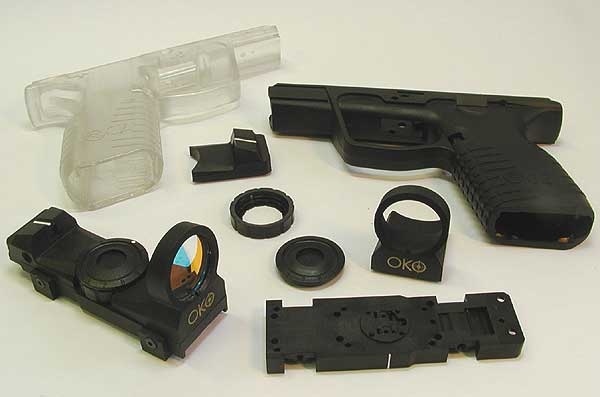

Image 2 - zbrane_v
zbrane_v
Image 3 -

Technological capacities of our toolworks



Machining center
Type of machining width X depth Y height Z max. weight note
CNC MCFV 1060 1 270 590 1 350 kg
1 016 610 760


NC milling
Type of machining width X depth Y height Z max. weight note
TOS Olomouc FGS 1250 500
40/50 850 500 450


CNC graving - graphite elektrode
Type of machining width X depth Y height Z max. weight note
TOS HWT C - 442 400 400 250 25 kg


NC turning
Type of machining width X depth Y height Z max. weight note
Fermat SF 61 600/ 1900f CNC Ø600 1 600


Elektroerosion machining
Type of machining width X depth Y height Z max. weight note
HANSEN 450 C - CNC 450 350 250 kg Work table
300 200 280 axis travel
ONA DB 300 CNC 650 400 750 kg Work table
400 300 300 axis travel
AGIE MONDO 2 400 300 250 kg Work table
300 250 250 axis travel


Wire cutting
Type of machining width X depth Y height Z max. weight note
AGIE 200 900 900 200 kg Work table
250 400 axis travel

Mitsubishi AQ10

630

530

800 kg

Work table

350

250

220

axis travel



Grinding
Type of machining width X depth Y height Z max. weight note
Surface grinding 600 300 300 180 kg
Round grinding Ø 250 100 25 kg hole
Ø 280 100 60 kg outside
1000 small diameter
Contour grinding
EWAG AG WS11
HANS & KOLB
JUNGEN TOOLS


Drilling
Type of machining width X depth Y height Z max. weight note
Drilling 850 570 250


Conventional turning
Type of machining width X depth Y height Z max. weight note
Soustružení konvenční Ø 200 2000 300 kg
